Manufacturer: Ness Corporation

Ness 3G/4G DIALLER INC SIM UNLOCKED

NESS 3G/4G DIALLER inc SIM Unlocked

Replaced by Ness 4G Dialler Gen2, see K-106-480S

SKU: K-106-250S

4G Dialler

The Ness 4G Dialler provides a 3G or 4G pathway for alarm diallers to communicate in the absence of a landline. Ideal for NBN households, remote locations and anywhere you need easy and reliable cellular dialler monitoring.

This unit provides support for any dialler that reports to any Central Monitoring Station (without a need to any special control room receiver) or can dial an alarm event to a personal number, in the same fashion as it would if a landline was available.

Also includes a backup battery to allow operation in the event of mains power failure.

No programming of of the device is required, just plug and go.

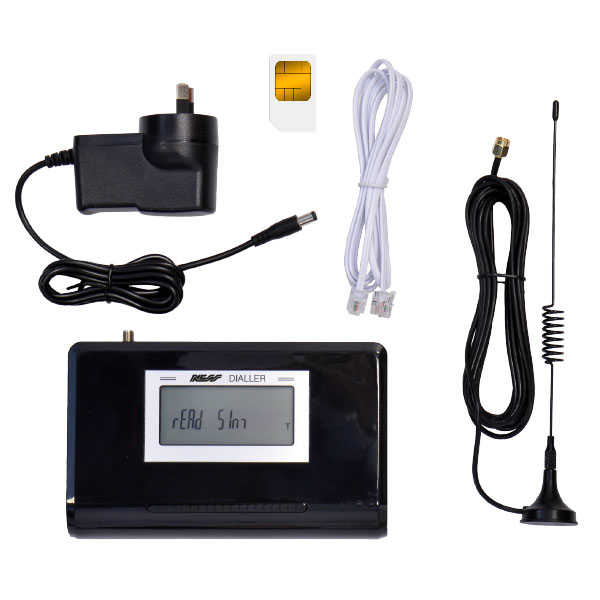

Supplied with plug pack power supply, 4G Antenna.

This product is not network locked. Includes a NESS SIM card for your convenience. Activate the SIM on a Ness plan or BYO SIM.

IMPORTANT NOTES
• This product is designed to provide a cellular pathway for alarm control panels with PSTN diallers in the absence of landlines.
• Not intended for industrial use.
• Not recommended for use in lift cars or other non-stationary situations.
• Ensure that the location has adequate cellular signal and test operation after installation.
• The unit must be tested weekly to verify cellular reception and correct operation.
• The 12V plug pack supplied must be used. Do not connect to an unregulated or 'noisy' power supply.



GSM Compatibility 3G/4G
AU Frequencies Supported MHz 4G
Telstra B1 2100, B3 1800, B7 2600, B8 900, B28 700
Optus B1 2100, B3 1800, B7 2600, B28 700, B40 2300
Vodafone B1 2100, B3 1800, B5 850
3G
Telstra B5 850
Optus B8 900
Vodafone B1 2100
SIM CARD Standard size SIM
Alarm Panel compatibility Compatible with most alarm diallers in Contact ID DTMF and Voice formats,
Including all Ness systems (e.g. D8X/D16X Series, D8xD / D16XD Series,
SmartLiving Series and M1 Series)
Operation Voltage 12VDC (Plug Pack Supplied)
Battery Backup Internal rechargeable Battery (Included)
Battery Backup Time max. 2-3 hours on its own internal battery.
Power Consumption 25mA (Standby), 300mA (Communicating)
Antenna 3dB whip with magnetic base and 2.9m Cable length
Dimensions 175 x 115 x 35 mm
Weight 370g
Operation Temperature 0°C to +50°C

Brochure

4G Dialler

The Ness 4G Dialler provides a 3G or 4G pathway for alarm diallers to communicate in the absence of a landline. Ideal for NBN households, remote locations and anywhere you need easy and reliable cellular dialler monitoring.

This unit provides support for any dialler that reports to any Central Monitoring Station (without a need to any special control room receiver) or can dial an alarm event to a personal number, in the same fashion as it would if a landline was available.

Also includes a backup battery to allow operation in the event of mains power failure.

No programming of of the device is required, just plug and go.

Supplied with plug pack power supply, 4G Antenna.

This product is not network locked. Includes a NESS SIM card for your convenience. Activate the SIM on a Ness plan or BYO SIM.

IMPORTANT NOTES
• This product is designed to provide a cellular pathway for alarm control panels with PSTN diallers in the absence of landlines.
• Not intended for industrial use.
• Not recommended for use in lift cars or other non-stationary situations.
• Ensure that the location has adequate cellular signal and test operation after installation.
• The unit must be tested weekly to verify cellular reception and correct operation.
• The 12V plug pack supplied must be used. Do not connect to an unregulated or 'noisy' power supply.
