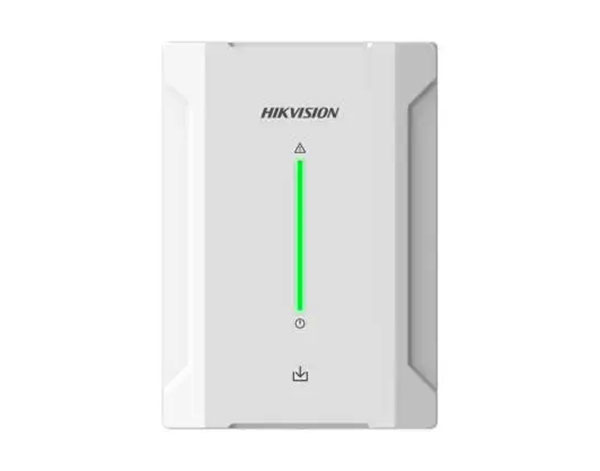

Picture of Hikvision DS-PM1-O4L-H Output Expander 4 Relays (Lo)

Manufacturer: Hikvision

Hikvision DS-PM1-O4L-H Output Expander 4 Relays (Lo)

HIKVISION DS-PM1-O4L-H OUTPUT EXPANDER 4 RELAYS (LO)

SKU: 114-505

Overview
Specifications
Downloads

Hikvision AX Hybrid Pro Wired 4-way low current relay

4 on-board low current relays, supporting 6-30V and up to 5A current
1 power output, maximum 500mA
Powered by Speed-X technology，supporting expander cascading with 1 uplink Speed-X port and 1 downlink Speed-X port

Hardware features

Serial port1 TTL serial port
Tamper-ProofSupport (front and rear)
Bus2×Speed-X bus, 1 uplink for control panel connection and 1 downlink for next expander

Electrical characteristics

Power supply11 to 24 VDC
Typical voltage12 VDC
Power consumption
Maximum current 153 mA@12 VDC;

Quiescent current 70mA@12 VDC
Output CurrentMaximum 500 mA
Output Voltage9 to 12 VDC

Display

LED Indicator1 for power，1 for fault

General

Dimension(WxHxD)110 mm × 155 mm × 32.5 mm
Shell materialPlastic
Weight285g
Operation temperature-10°C to 40°C
Operation humidity10% to 90%

Hikvision AX Hybrid Pro Wired 4-way low current relay

4 on-board low current relays, supporting 6-30V and up to 5A current
1 power output, maximum 500mA
Powered by Speed-X technology，supporting expander cascading with 1 uplink Speed-X port and 1 downlink Speed-X port
