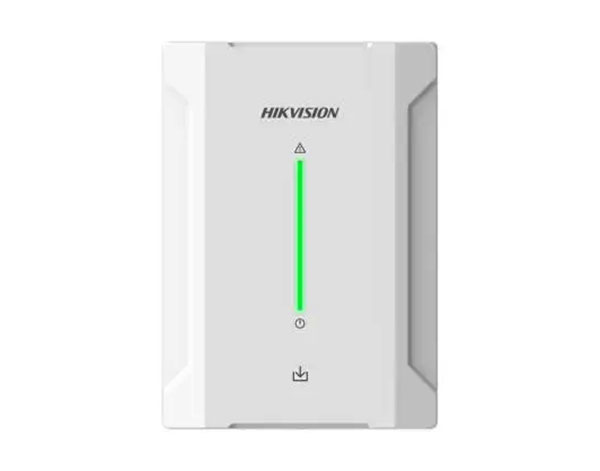

Picture of Hikvision DS-PM1-I8O2-H Wired Input Expander

Manufacturer: Hikvision

Hikvision DS-PM1-I8O2-H Wired Input Expander

HIKVISION DS-PM1-I8O2-H WIRED INPUT EXPANDER

SKU: 114-504

Overview
Specifications
Downloads

Hikvision AX Hybrid Pro Wired Input Expander

8 on-board wired zones
Supports 3EOL connection(Alarm: 1KΩ; Tamper: 1KΩ; Fault: 2.2KΩ)
Supports zone alarm, tamper, masking, fault, short detection
1 power output for wired detectors
2 Speed-X bus, supporting wired input expander cascade mode

Hardware features

Alarm input8
IO Output2 (connect to relay module)
Bus2×Speed-X bus, 1 input for control panel connection and 1 output for expander cascading
Tamper-ProofSupport (front and rear)

Electrical characteristics

Power supply11 to 24 VDC
Typical voltage12 VDC
Power consumption
Maximum current: 119 mA@12 VDC

Quiescent current: 45 mA@12 VDC
Output Voltage9 to 12 VDC
Output CurrentMaximum 500 mA

Display

LED IndicatorLED indicators: 1 for power, 1 for fault

General

Operation temperature-10°C to 40°C
Operation humidity10% to 90%
Shell materialPlastic
Dimension(WxHxD)110 mm × 155 mm × 32 mm
Weight252.5 g

Hikvision AX Hybrid Pro Wired Input Expander

8 on-board wired zones
Supports 3EOL connection(Alarm: 1KΩ; Tamper: 1KΩ; Fault: 2.2KΩ)
Supports zone alarm, tamper, masking, fault, short detection
1 power output for wired detectors
2 Speed-X bus, supporting wired input expander cascade mode
