Manufacturer: Hikvision

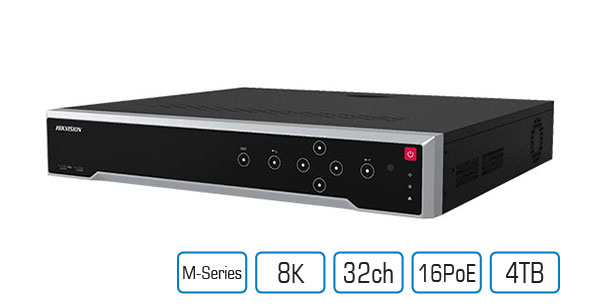

Hikvision DS-7732NI-M4/16P 32ch M-Series NVR &4TB HDD

HIKVISION DS-7732NI-M4/16P 32CH M-SERIES NVR &4TB HDD
SKU: 114-437-4

Hikvision DS-7732NI-M4/16P M-Series
32CH 1.5U 16 PoE 8K NVR

Hikvision DS-7732NI-M4/16P 32CH Ultra Series NVR inc 4TB HDD 320Mbps Bit Rate Input Max(up to 32-ch IP video), 32x2MP decoding capability, 4 SATA Interfaces, 2 HDMI ouputs(up to 8K),1 eSATA,16 independent PoE network interfaces, alarm I/O: 16/9, 1.5U case,19"

  • H.265+/H.265/H.264+/H.264 video formats
  • Up to 32-ch IP camera inputs
  • Up to 32-ch@1080p decoding capacity
  • Up to 320 Mbps incoming bandwidth
  • Inc 4TB HDD

Video And Audio

  • IP Video Input: 32-ch Up to 32 MP resolution

    *: After ultra HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP IP video inputs.

  • Incoming Bandwidth320 Mbps
  • Outgoing Bandwidth400 Mbps
  • HDMI 1 Output8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
  • HDMI 2 Output4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
  • VGA Output1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
  • Video Output ModeHDMI1/VGA simultaneous output, HDMI2/VGA independent output
  • CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
  • Audio Output1-ch, RCA (Linear, 1 KΩ)
  • Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)

Decoding

  • Decoding FormatH.265+/H.265/H.264+/H.264
  • Recording Resolution

    32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF

    *: After ultra HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP IP video inputs.

  • Synchronous Playback16-ch
  • Decoding Capability2-ch@32 MP (30 fps)/2-ch@24 MP (30 fps)/4-ch@12 MP (20 fps)/8-ch@8 MP (25 fps)/16-ch@4 MP (30 fps)/32-ch@1080p (30 fps)
  • Dual-Stream RecordingSupport
  • Stream TypeVideo, Video & Audio
  • Audio CompressionG.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2

Network

  • Remote Connection128
  • Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
  • Network Interface1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

PoE

  • Interface: 16 (114-437) 24 (114-437-24) RJ-45 10/100 Mbps self-adaptive Ethernet interface
  • Power ≤ 200 W
  • Standard IEEE 802.3 af/at

RAID

  • RAID TypeN/A

Auxiliary Interface

  • ESATA1 eSATA interface
  • SATA4 SATA interfaces
  • CapacityUp to 14 TB capacity for each HDD
  • Serial Interface2 RS-485 (half-duplex), 1 RS-232
  • Alarm In/Out16/9
  • USB InterfaceFront panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
  • Ctrl 12V: Controllable 12 VDC, 1 A power output for external alarm device; The power will be turned on when the alarm output is triggered.

    *: The Ctrl 12V power is controlled by alarm output 9.

  • DC 12V12 VDC, 1 A power output

General

  • Power Supply100 to 240 VAC, 50 to 60 Hz
  • Consumption≤ 15 W (without HDD and PoE off)
  • Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
  • Working Humidity10% to 90%
  • Chassis19-inch rack-mounted 1.5U chassis
  • Dimension (W × D × H)445 × 400 × 75 mm ( 17.5"× 15.7" × 3.0")
  • ≤ 5 kg (without HDD, 11 lb.)

Certification

  • FCCPart 15 Subpart B, ANSI C63.4-2014
  • CE EN 55032:2015+A1:2020, ENIEC61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:201 9, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020

Brochure

Hikvision DS-7732NI-M4/16P M-Series
32CH 1.5U 16 PoE 8K NVR

Hikvision DS-7732NI-M4/16P 32CH Ultra Series NVR inc 4TB HDD 320Mbps Bit Rate Input Max(up to 32-ch IP video), 32x2MP decoding capability, 4 SATA Interfaces, 2 HDMI ouputs(up to 8K),1 eSATA,16 independent PoE network interfaces, alarm I/O: 16/9, 1.5U case,19"

  • H.265+/H.265/H.264+/H.264 video formats
  • Up to 32-ch IP camera inputs
  • Up to 32-ch@1080p decoding capacity
  • Up to 320 Mbps incoming bandwidth
  • Inc 4TB HDD
