Manufacturer: Hikvision

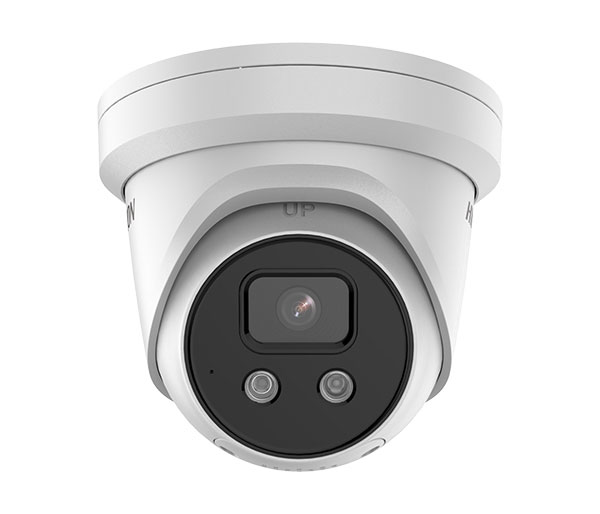

Hikvision DS-2CD2366G2-ISU/SL 6MP LIVEGUARD TURRET 4mm

6MP ACUSENSE TURRET With Microphone, Speaker, Strobe
SKU: 114-291-4

6MP AcuSense Strobe Light and Audible Warning Fixed Turret Network Camera

  • High quality imaging with 6 MP resolution
  • Excellent low-light performance with powered-by-DarkFighter technology
  • Clear imaging against strong back light due to 120 dB true WDR technology
  • Efficient H.265+ compression technology
  • Focus on human and vehicle targets classification based on deep learning
  • Active strobe light and audio alarm to warn intruders off
  • Provide real-time security via built-in two-way audio
  • Water and dust resistant (IP67)

Camera

  • Image Sensor1/2.4" Progressive Scan CMOS
  • Max. Resolution3200 × 1800
  • Min. IlluminationColor: 0.003 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
  • Shutter Time1/3 s to 1/100,000 s
  • Day & NightIR cut filter
  • Angle AdjustmentPan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°

Lens

  • Lens TypeFixed focal lens, 2.8, 4, and 6 mm optional
  • Focal Length & FOV

    2.8 mm, horizontal FOV 105.1°, vertical FOV 53.4°, diagonal FOV 128.6°

    4 mm, horizontal FOV 83.9°, vertical FOV 44.5°, diagonal FOV 100.8°

    6 mm, horizontal FOV 47.5°, vertical FOV 26°, diagonal FOV 54.5°

  • Lens MountM12
  • Iris TypeFixed
  • ApertureF1.6

DORI

  • DORI

    2.8 mm: D: 78.6 m, O: 31.2 m, R: 15.7 m, I: 7.9 m

    4 mm: D: 95.6 m, O: 37.9 m, R: 19.1 m, I: 9.6 m

    6 mm: D: 160.0 m, O: 63.5 m, R: 32.0 m, I: 16.0 m

Illuminator

  • Supplement Light TypeIR
  • Supplement Light RangeUp to 30 m
  • Smart Supplement LightYes
  • IR Wavelength850 nm

Video

  • Main Stream



    50 Hz: 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

    60 Hz: 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

  • Sub-Stream

    50 Hz: 25 fps (640 × 480, 640 × 360)

    60 Hz: 30 fps (640 × 480, 640 × 360)

  • Third Stream

    50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

    60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360),

    *Third stream is supported under certain settings.

  • Video Bit Rate32 Kbps to 16 Mbps
  • H.264 TypeBaseline Profile,Main Profile,High Profile
  • H.265 TypeMain Profile
  • Bit Rate ControlCBR,VBR
  • Video Compression

    Main stream: H.265+/H.265/H.264+/H.264,

    Sub-stream: H.265/H.264/MJPEG,

    Third stream: H.265/H.264 (*Third stream is supported under certain settings.)

  • Scalable Video Coding (SVC)H.264 and H.265 encoding
  • Region Of Interest (ROI)1 fixed region(s) for main stream and sub-stream
  • Target CroppingYes

Audio

  • Audio TypeMono sound
  • Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC
  • Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC)
  • Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
  • Environment Noise FilteringYes

Network

  • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP
  • Simultaneous Live ViewUp to 6 channels
  • APIOpen Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK
  • User/Host

    Up to 32 users

    3 user levels: administrator, operator, and user

  • SecurityPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
  • ClientiVMS-4200,Hik-Connect,Hik-Central
  • Network Storage

    NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),

    Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

  • Web Browser

    Plug-in required live view: IE10+,

    Plug-in free live view: Chrome 57.0+, Firefox 52.0+,

    Local service: Chrome 57.0+, Firefox 52.0+


  • Image Parameters SwitchYes
  • Image SettingsRotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
  • Day/Night SwitchDay,Night,Auto,Schedule
  • Wide Dynamic Range (WDR)120 dB
  • SNR≥ 52 dB
  • Image EnhancementBLC,HLC,3D DNR
  • Privacy Mask4 programmable polygon privacy masks

Interface

  • Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
  • On-Board Storage



    Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB

  • Reset KeyYes
  • Built-In MicrophoneYes
  • Built-In SpeakerMax. power concumption: 1.2 W, max. sound pressure: 10 cm: 95 dB
  • Audio

    1 input (line in), terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,

    1 output (line out), terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium

  • Alarm1 input, 1 output (max. 24 VDC/24 VAC, 500 mA)

Event

  • Basic EventMotion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception,alarm input and output
  • Smart EventLine crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle)),Scene change detection
  • LinkageUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture,trigger alarm output,audible warning,white light flashing

Deep Learning Function

  • Face Capture



    Yes

General

  • Power

    12 VDC ± 25%, 0.70 A, max. 8.4 W,Ø5.5 mm coaxial power plug,reverse polarity protection,

    PoE: 802.3af, Class 3, 36 V to 57 V, 0.27 A to 0.16 A, max. 9.7 W

  • Dimension



    Ø138.3 mm × 112.1 mm (Ø5.5 × 4.4\")"

  • MaterialMetal except for trim ring
  • Package Dimension170 mm × 170 mm × 150 mm (6.7" × 6.7" × 5.9")
  • Approx. 820 g (1.8 lb.)
  • With Package WeightApprox. 1150 g (2.5 lb.)
  • Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Language



    33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

  • General FunctionHeartbeat,anti-flicker,mirror,flash log,password reset via email,pixel counter

Approval

  • EMC

    FCC: 47 CFR Part 15, Subpart B,

    CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,

    RCM: AS/NZS CISPR 32: 2015,

    IC: ICES-003: Issue 7,

    KC: KN32: 2015, KN35: 2015

  • Safety

    UL: UL 62368-1,

    CB: IEC 62368-1: 2014+A11,

    CE-LVD: EN 62368-1: 2014/A11: 2017

  • Environment

    CE-RoHS: 2011/65/EU,

    WEEE: 2012/19/EU,

    Reach: Regulation (EC) No 1907/2006

  • ProtectionIP67: IEC 60529-2013

Brochure

6MP AcuSense Strobe Light and Audible Warning Fixed Turret Network Camera

  • High quality imaging with 6 MP resolution
  • Excellent low-light performance with powered-by-DarkFighter technology
  • Clear imaging against strong back light due to 120 dB true WDR technology
  • Efficient H.265+ compression technology
  • Focus on human and vehicle targets classification based on deep learning
  • Active strobe light and audio alarm to warn intruders off
  • Provide real-time security via built-in two-way audio
  • Water and dust resistant (IP67)
