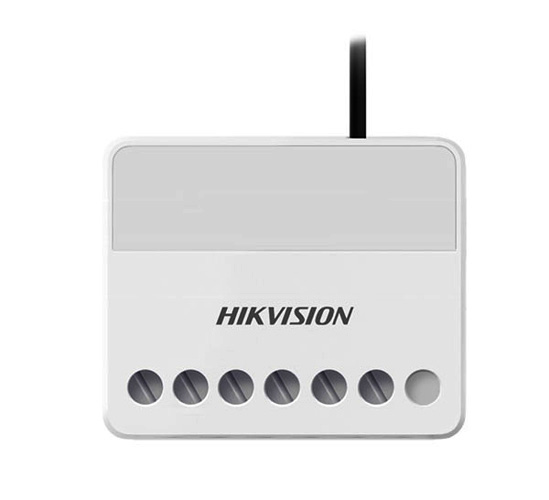

Picture of Hikvision AX PRO Series Relay Module GEN2

Manufacturer: Hikvision

Hikvision AX PRO Series Relay Module GEN2

HIKVISION DS-PM1-O1L-WB RELAY MODULE

SKU: 114-269

Overview
Specifications
Downloads

Relay module GEN2

433MHz two-way wireless communication
AES-128 encryption
LED display, show status of device and replay on/off display
Small case design, which can be put into hiding places easily
Automation operating, one button turn on/off from APP/Keyfob/Keypad
Setting scenarios by different events
With one tamper input, can be used as zone input for alarm

Software Features

Scenario SettingBy Alarm, By Operation, By Fault, By Schedule, By Manual
Learning Button1, For register

Hardware Features

Serial Port1, for debug

Electrical Characteristics

Power SupplyDC 7V – 24V
Operation Humidity10％~90％
Operation Temperature﹣10℃~+55℃

Wireless Transmission

RF Frequency433MHz
RF MethodTwo way communication
RF Modulation2GFSK
RF Distance800m
Wireless SecurityAES-128

Display

LEDs Status3, Register/Signal (Green/Red), Power (Green), Relay Status (Blue)

General

Installation MethodWall Mounting
Dimension(WxHxD)38x25x18mm
Shell MaterialPlastic
ColorWhite
28.5g

Device Management

Alarm Input1 for tamper, NO/NC
Relay Output1, NO/NC (0~36V DC, Max 5A）

Relay module GEN2

433MHz two-way wireless communication
AES-128 encryption
LED display, show status of device and replay on/off display
Small case design, which can be put into hiding places easily
Automation operating, one button turn on/off from APP/Keyfob/Keypad
Setting scenarios by different events
With one tamper input, can be used as zone input for alarm
