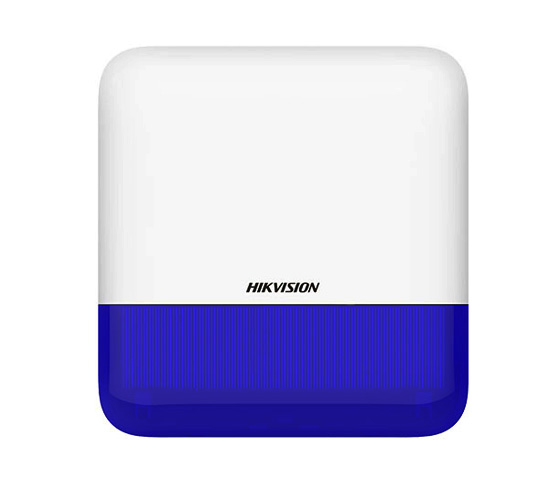

Picture of Hikvision AX PRO Series Wireless Outdoor Sounder GEN2

Manufacturer: Hikvision

Hikvision AX PRO Series Wireless Outdoor Sounder GEN2

HIKVISION DS-PS1-E-WB WIRELESS OUTDOOR SOUNDER (BLUE)

SKU: 114-255

Overview
Specifications
Downloads

Wireless External Sounder GEN2

868 MHz two-way wireless communication
3 years battery life span (triggered every two weeks and alerting 90 s for each triggering)
AES-128 encryption
Front and rear panel tamper-proof
3 kinds of alarm sounds: fire alarm, panic alarm, and intrusion alarm
Buzzer Decibel: 110 dB
Fully remote configurable through App
Multiple enrollment methods and easy installation design
Frequency hopping against jamming for reliable transmission
IP65 protective level

Electrical Characteristics

Battery TypeBattery (default power supply method) or 12 VDC
Power SupplyBattery (default power supply method) or 12 VDC
Operation Humidity10% to 90% (no condensing)
Operation Temperature-20 °C to 60 °C (-4 °F to 140 °F)
Battery Life Span3 years in work status

Wireless Transmission

RF Frequency868 MHz
RF Modulation2GFSK
RF Distance1.6 km (open area)

General

IP RateIP65
Installation MethodWall mounting
Dimension(WxHxD)190× 200 × 47. 3mm .(7.48" ×7.87" × 1.86"）
Shell MaterialPC+ABS
606.5 g (21.4 oz)

Wireless External Sounder GEN2

868 MHz two-way wireless communication
3 years battery life span (triggered every two weeks and alerting 90 s for each triggering)
AES-128 encryption
Front and rear panel tamper-proof
3 kinds of alarm sounds: fire alarm, panic alarm, and intrusion alarm
Buzzer Decibel: 110 dB
Fully remote configurable through App
Multiple enrollment methods and easy installation design
Frequency hopping against jamming for reliable transmission
IP65 protective level
