Manufacturer: Hikvision

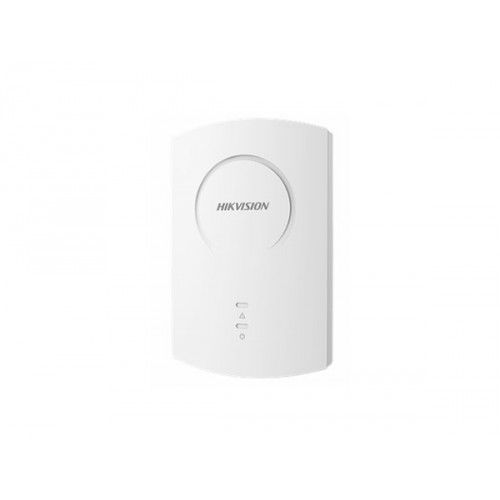

HIKVISION DS-PM-WO2 Wireless Output Expander GEN1

Wireless Output Expander

SKU: 114-200

Overview
Specifications
Downloads

Hikvision DS-PM-WO2 GEN1 - Wireless Output Expander with 2 controllable O/P's to larn into and be controlled via the Hikvision Wireless Security Control Panel. (Refer Ness Part No 114-191)

DS-PM-WO2 wireless output expander is a receiving device which supports wireless FM mode to transmit data. The Expander receives the signal of the alarm control panel in a wireless way and has 2 separate outputs. These outputs can be controlled automatically based on the systems event or from the Hik-Connect App.

Specification
RF frequency:	433 MHz/868 MHz
RF distance:	800 m (open area)
RF speed:	10 kbps
Relay output:	8, NO/NC
Alarm output type:	8-ch, capacity: 30 VDC/1 A
Tamper:	Front and rear supported
Power supply:	9 to 15 VDC
Status LEDs:	3 LED: power (green), fault (orange), signal strength (green & orange)
Button:	1 onboard tamper button
Switch:	1 switch for turning on/off LED
Shell material:	PC + ABS
Application scene:	Indoor
Operating temperature:	- 10 °C to 55 °C (14 °F to 131 °F)
Operating humidity:	10% to 90% (non-condensing)
Dimension (H × W × D):	160 mm × 105 mm × 28 mm (6.29" × 4.13" × 1.10")
Weight:	165.0 g

Hikvision DS-PM-WO2 GEN1 - Wireless Output Expander with 2 controllable O/P's to larn into and be controlled via the Hikvision Wireless Security Control Panel. (Refer Ness Part No 114-191)
