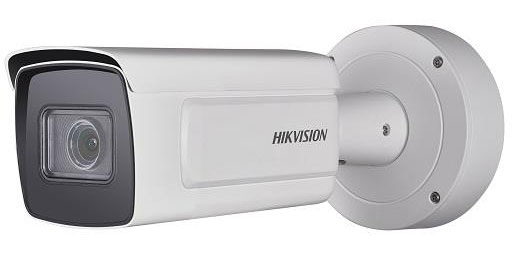

HIK DS-2CD5A26G0-IZS 2MP Varifocal Bullet 8-32mm

HIK DS-2CD5A26G0-IZS 8-32MM
SKU: 114-097B

2MP Darkfighter Moto Varifocal Bullet Network Camera

  • High quality imaging with 2 MP resolution
  • Excellent low-light performance via DarkFighter technology
  • Clear imaging against strong back light due to LightFighter technology
  • Efficient H.265+ compression technology to save bandwidth and storage
  • Advanced streaming technology enables smooth live view and data self-correction in poor networks
  • 5 streams and up to 5 custom streams to meet a wide variety of applications
  • Hikvision embedded open platform allows third party applications to be installed in Hikvision network cameras
  • 6 behavior analyses, 3 exception detection, and face detection
  • Water and dust resistant and vandal proof (IP67 and IK10).

Camera

  • Image Sensor1/1.8″ Progressive Scan CMOS
  • Min. IlluminationColor: 0.002 Lux @ (F1.2, AGC ON), 0.004 Lux @ (F1.6, AGC ON), 0 Lux with IR
  • Shutter Speed1 s to 1/100,000 s
  • Slow ShutterYes
  • Wide Dynamic Range140 dB
  • Day & NightIR Cut Filter
  • Angle AdjustmentBracket, pan: 0° to 355°, tilt: 0° to 90°, rotate: 0° to 360°

Lens

  • FocusAuto, semi-auto, manual
  • Lens TypeMotorized lens, 2.8 to 12 mm and 8 to 32 mm optional
  • FOV2.8 to 12 mm, horizontal FOV 103.3° to 38.6°, vertical FOV 54.2° to 21.9°, diagonal FOV 124.2° to 44.3° 8 to 32 mm, horizontal FOV 42.5° to 13.4°, vertical FOV 23.4° to 7.7°, diagonal FOV 49° to 15.3°
  • Aperture2.8 to 12 mm: F1.2 to 2.5 8 to 32 mm: F1.6, Constant F1.6 throughout the zoom range
  • Lens MountIntegrated
  • Auto-IrisP-iris

Illuminator

  • IR Range2.8 to 12 mm: up to 50 m; 8 to 32 mm: up to 100 m
  • Wavelength850 nm

Video

  • Max. Resolution1920 × 1080
  • Main Stream50Hz: 50fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 60fps (1920 × 1080, 1280 × 960, 1280 × 720)
  • Video Stream5 defined streams and up to 5 custom stream
  • Sub-Stream50Hz: 25fps (704 × 576, 640 × 480) 60Hz: 30fps (704 × 480, 640 × 480)
  • Third Stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480)
  • Fourth Stream50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
  • Fifth Stream50Hz: 25fps (704 × 576, 640 × 480) 60Hz: 30fps (704 × 480, 640 × 480)
  • Custom Stream50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
  • Video CompressionMain stream: H.265+/H.265/H.264+/H.264 Sub stream/third stream/fourth stream/fifth stream/custom stream: H.265/H.264/MJPEG
  • Video Bit Rate32 Kbps to 16 Mbps
  • H.264 TypeBaseline Profile/Main Profile/High Profile
  • H.265 TypeMain Profile
  • H.264+Main stream support
  • H.265+Main stream support
  • Scalable Video Coding (SVC)H.264 and H.265 encoding
  • Region Of Interest (ROI)Main stream/sub stream/third stream/fourth stream/fifth stream: 4 fixed regions and dynamic face tracking for each stream

Network

  • Simultaneous Live ViewUp to 20 channels
  • APIONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, Ehome
  • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
  • Smooth StreamingYes
  • User/HostUp to 32 users. 3 user levels: administrator, operator and user
  • SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, TLS1.0, TLS1.1
  • Network StoragemicroSD/SDHC/SDXC card (256 GB), local storage and NAS (NFS,SMB/CIFS), ANR Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
  • ClientiVMS-4200, Hik-Connect, Hik-Central
  • Web BrowserPlug-in required live view: IE8+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local service: Chrome57.0+,Firefox52.0+


  • Day/Night SwitchDay/Night/Auto/Schedule/Triggered by Alarm In
  • Target CroppingYes
  • Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24bit bmp format
  • Image EnhancementBLC, HLC, 3D DNR, Defog, EIS, distortion correction
  • Image SettingsRotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser
  • SNR≥52dB

Interface

  • Alarm2 inputs, 2 outputs (max. 24 VDC/VAC, 1A)
  • Video Output1Vp-p composite output (75 Ω/CVBS), only for adjustment
  • On-Board StorageBuilt-in microSD/SDHC/SDXC slot, up to 256 GB
  • Hardware ResetReset via reset button on camera body, web browser and client software
  • Communication Interface1 RJ45 10M/100M/1000M Ethernet port
  • Interface StyleConnector panel
  • Heater-H: yes

Event

  • Basic EventMotion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
  • Smart EventLine crossing detection, up to 4 lines configurable Intrusion detection, up to 4 regions configurable Region entrance detection, up to 4 regions configurable Region exiting detection, up to 4 regions configurable Unattended baggage detection, up to 4 regions configurable Object removal detection, up to 4 regions configurable Face detection: detects faces and upload images Scene change detection, defocus detection
  • CountingCounting

General

  • Linkage MethodTrigger recording:memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, SFTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, alarm output, Email
  • Firmware Version5.6.0
  • Web Client Language32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
  • General FunctionAnti-flicker, 5 streams and up to 5 custom streams, heartbeat, mirror, privacy masks, flash log, password reset via e-mail, pixel counter, HTTP listening
  • Embedded Open PlatformYes. The camera supports installation and running up to 4 extra applications.
  • Storage Conditions-30 °C to 65 °C (-22 °F to 149 °F) Humidity 95% or less (non-condensing)
  • Startup And Operating Conditions-30 °C to 65 °C (-22 °F to 149 °F), -H: -40 °C to 65 °C (-40 °F to 149 °F) Humidity 95% or less (non-condensing)
  • Power Supply12 VDC ± 20%, two-core terminal block; reverse polarity protection, PoE (802.3at, class 4)
  • Power Consumption And Current-IZS: 12 VDC, 1.08 A, max. 13 W; PoE (802.3at, 42.5 V to 57 V), 0.31 A to 0.23 A, max. 13 W -IZHS: 12 VDC, 1.13 A, max. 13.5 W; PoE (802.3at, 42.5 V to 57 V), 0.42 A to 0.32 A, max. 18 W
  • Camera DimensionCamera: Φ144 × 347 mm (Φ5.7″ × 13.7″) With package: 405 × 190 × 180 mm (15.9″ × 7.5″ × 7.1″)
  • Camera WeightCamera: approx. 2.45 kg (5.40 lb.) With package: approx. 2.7 kg (5.95 lb.)

Approval

  • EMC

    RCM:AS/NZS 60950.1:2003 + Am1, Am2 and Am3,AS/NZS CISPR 32:2015,

    IC:IC-VoC(ICES-003 Issue 7:2020),

    FCC: FCC-SDoC(ANSI C63.4,FCC Part15 sub B),

    KC: KN 301489-1,KN 301489-17,RRA NOTICE 2017-14(2017.12.05),RRA NOTICE 2017-19(2017.12.28),

    CE: CE-EMC(EN 50130-4:2011+A1:2014,EN 55032:2015,EN 61000-3-2:2014,EN 61000-3-3:2013)

  • Safety

    CB: IEC 60950-1,

    UL: UL 60950-1:2014,CAN/CSA C22.2 No. 60950-1-07:2014,

    BIS: IS 13252(Part 1)2010+A1:2013+A2:2015,

    LOA: SANS IEC60950-1,

    CE: CE-LVD(EN 60950-1:2005 + Am 1:2009 + Am 2:2013)

  • EnvironmentCE: CE-RoHs (RoHS Directive 2011/65/EU+2015/863)
  • ProtectionIngress protection: IK10 (IEC 62262:2002), IP67 (IEC 60529-2013)
