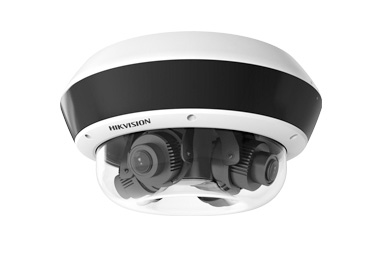

HIKVISION DS-2CD6D24FWD-IZS

Camera

• Image Sensor1/2.7″ Progressive Scan CMOS
• Max. Resolution

  1920 × 1080



• Min. Illumination

  Color: 0.006 Lux @ (F1.2, AGC ON), 0.01 Lux @ (F1.6, AGC ON)

  B/W: 0.002 Lux @ (F1.2, AGC ON); 0.003 Lux @ (F1.6, AGC ON)

  0 Lux with IR on

• Shutter Time1 s - 1/100,000 s
• Day & Night

  IR Cut Filter



• Angle AdjustmentFour flexible lens in one track, slide range: -180°to 180°, tilt: 0°to 135°, rotate: 0°to 355°

Lens

• Focal Length & FOV

  2.8 mm to 12 mm,

  Horizontal field of view: 30°to 96.3°

  Vertical field of view: 17°to 54°

  Diagonal field of view: 34° to 121°



• Lens MountΦ14
• ApertureF1.6

• Illuminator
• Supplement Light TypeIR
• Supplement Light Range10 m to 30 m
• IR Wavelength850 nm

Video

• Main Stream

  50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720)

  60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720)



• Sub-Stream

  50 Hz: 25 fps (704 × 576, 640 × 480)

  60 Hz: 30 fps (704 × 480, 640 × 480)



• Third Stream

  50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480)

  60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480)

• Video Compression

  Main stream: H.265+/H.265/H.264+/H.264

  Sub stream: H.265/H.264/MJPEG

  Third stream: H.265/H.264



• Video Bit Rate32 Kbps to 16 Mbps
• H.264 TypeBaseline Profile/Main Profile/High Profile
• H.265 TypeMain Profile
• Scalable Video Coding (SVC)H.264 Support
• Region Of Interest (ROI)

  Support 4 fixed region for each stream



Audio

• Audio Compression

  G.711/G.722.1/G.726/MP2L2/PCM/AAC



• Audio Bit Rate64 Kbps(G.711)/16 Kbps(G.722.1)/16 Kbps(G.726)/32-192 Kbps(MP2L2)/16-64 Kbps(AAC)
• Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Environment Noise FilteringYes

Network

• ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP
• Simultaneous Live ViewUp to 20 channels
• APIONVIF (PROFILE S, PROFILE G), ISAPI
• User/Host

  Up to 32 users

  3 levels: Administrator, Operator and User



• Network StorageSupport Micro SD/SDHC/SDXC card (128 G), local storage and NAS (NFS,SMB/CIFS), ANR
• ClientiVMS-4200
• Web BrowserIE8+, Chrome31-44, Firefox 30.0 - 51


• Image Settings

  Rotate mode, saturation, brightness, contrast, sharpness, and white balance are adjustable by

  client software or web browser



• Day/Night Switch

  Day/Night/Auto/Schedule/Triggered by Alarm In (-S)



• Wide Dynamic Range (WDR)120 dB
• Image Enhancement

  BLC, 3D DNR, EIS



• Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24bit bmp format

Interface

• Ethernet Interface

  1 RJ45 10 M/100 M/1000 M Ethernet port

  1 RS-485 interface (-S)

  1 1000 M FC fiber optical interface (-/NFC)

• On-Board StorageBuilt-in Micro SD/SDHC/SDXC slot, up to 128 GB
• Audio

  -S: 1-ch 3.5 mm input (line in/Mic in), 1-ch 3.5mm output, dual-track, stereo



• Alarm-S: 2 input, 2 output (up to 24 VD, 1A or 110 VAC, 500mA )
• Reset KeyYes
• Fiber OpticalFC interface, single mode, single fiber, 20 km transmission distance, (Tx)1310 nm/1.25 G, (Rx)1550 nm/1.25 G

Event

• Basic EventMotion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
• Smart Event

  Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection

  Face detection, audio exception detection, scene change detection, defocus detection, audio exception detection, scene change detection, defocus detection



General

• Power

  12 VDC ± 20%, 2.3 A, max. 28 W

  24 VAC ± 20% (for customization), 2.5 A, max. 50 to 60 Hz, three-core terminal block

  -IZ, -IZHS/NFC: Hi-PoE: 42.5 VDC to 57 VDC, 0.9 A to 0.6 A, max. 34W

  -Z: PoE (802.3at), 42.5 VDC to 57 VDC, max. 17W



• MaterialAluminum alloy, engineering plastics
• DimensionØ290 mm × 145.5 mm (Ø11.42" × 5.73")
• Package Dimension

  453 mm × 393 mm × 385 mm (17.8" × 15.47\" × 15.16\")



• Approx. 4.7 kg (10.3 lb.)
• With Package WeightApprox. 7.7 kg (16.8 lb.)
• Startup And Operating Conditions

  -30 °C to 60 °C (-22 °F to 140 °F). -H: -40 °C to 60 °C (-40 °F to 140 °F) Humidity 95% or less (non-condensing)



• General Function

  One-key reset, anti-flicker, mirror, heartbeat, password protection, privacy mask, watermark, IP

  address filter

Approval

• Protection

  IP67, IK10
