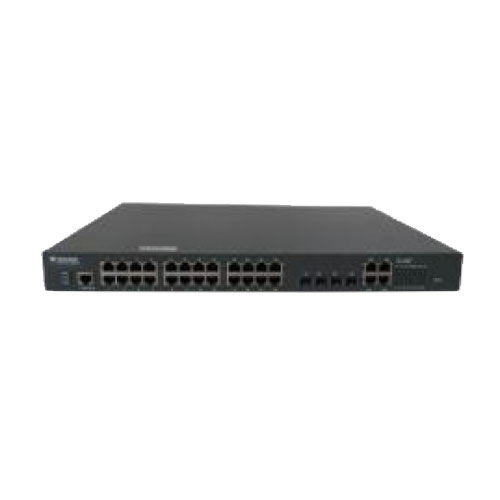

HIKVISION DS-3E2326P 24 Port Multiservice Gigabit Ethernet PoE Switch

Multiservice Gigabit Ethernet PoE

SKU: 104-801

Overview
Specifications
Features
Downloads

Adopting Broadcom chip, DS-3E23XXP PoE switch series is a two-layer network switch designed for video data transmission. They support all kinds of connections varying from 10/100M to 1000M for the flexible network configuration. The device supports various network management standards such as SNMP, Telnet, RMON and CLI. It can be managed by different network management platforms for a safe surveillance environment with high bandwidth and high-performance. DS-3E2326P

PoE switches support 802.3af and 802.3at power supply modes with the maximum power supply on each port reaching up to 30W. The product is capable of distributing power automatically according to each port’s load characteristic, which is ideal for video surveillance application.

Hikvision DS-3E2326P 24 Port PoE Switch (managed) 24-100M Ethernet electrical interface,4-1000M Ethernet electrical interface,4-1000M optical electrical combo interface(Optical module excluded),1 console interface,full network management funciton support.

Parameter
Port:	24 100M Base-T ports + 2 gigabit combo ports
Backplane Capacity:	22.8Gbps
Forwarding :	9.6Mpps
MAC Table:	8K
STP:	802.1D (STP), 802.1W (RSTP) and 802.1S (MSTP) BPDU protection, root protection, and loopback protection
VLAN:	4K VLAN; GVRP; QinQ; Private VLAN
QoS:	Flow classification based on L2~4 protocols (S2108POE does not support the function.) CAR flow limit 802.1P/DSCP priority re-labeling (S2108POE does not support the function.) SP, WRR, and “SP+WRR” Congestion avoidance mechanisms like Tail-Drop and WRED Flow monitoring and flow shaping
Multicast:	IGMP v1/v2/v3 IGMP snooping IGMP Fast Leave Multicast group strategy and quantity limitation Multicast flow copying over VLANs (S2108POE does not support the function.)
Network Management:	Console, Telnet, SSH2.0, Web SNMP v1/v2/v3 TFTP RMON
Network Security:	L2/L3/L4 ACL flow identification and filtration (S2108POE does not support the function.) DDoS attack prevention, TCP’s SYN Flood attack prevention, UDP Flood attack prevention, etc Broadcast/multicast/unknown unicast storm-control Port isolation Port security, and “IP+MAC+port” binding (S2108POE does not support.)
Dimension:	440×232×44
Power Over Ethernet
PoE Standard:	POE/POE+
General
Power Supply:	AC：100V-240V，50Hz±10%
Power Consumption:	400W (POE 380W)
Working Temperature:	0℃-50℃
Working Humidity:	10%-90% non-condensing
Storage Temperature:	-20℃-70℃
Storage Humidity:	5%-95% non-condensing

Excellent performance

64Gbps backplane capacity; non-blocking design; video streaming forwarding at full speed;
Gigabit optical-fibre transmission with up to 120Km distance;

High security and reliability

Providing multiple user authentication modes such as 802.1x authentication;
Port-MAC-IP bind;
Special ARP invasion detection to effectively stop ARP cheat;

Flexible and various managements

Adopt cluster technology, support device stacking and use a unified IP address for management;
Multiple management modes such as Console port, Telnet, Web and SNMP;

Powerful flow and broadcast management

Automatically detecting and controlling broadcast storms, monitoring IGMP packets and effectively preventing broadcast packet's flooding;
Flow control in full-duplex mode or half-duplex mode;
The rate limitation in a minimum step of 64K is supported on the Ethernet port;
IP multicast and QoS;

Varied protocols

802.3af power supply on all ports;
802.3at power supply with the maximum power supply on each port reaching up to 30W;
Configurable power supply priority guarantees, continuous power supply at key network nodes;
Configurable power consumption to save power and users' cost.
