Manufacturer: Hikvision

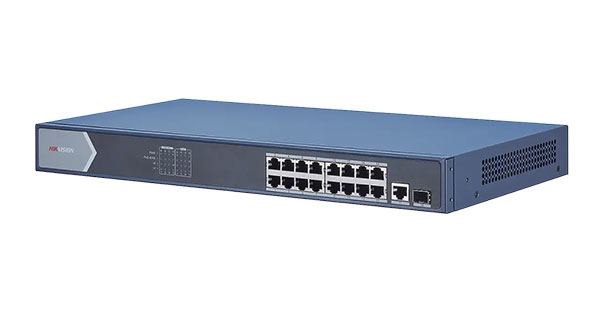

Hikvision DS-3E0518P-E 16 Port PoE Gigabit Switch 230W

DS-3E0518P-E 16 PORT PoE GIGABIT SWITCH
SKU: 104-800H

16 Port Gigabit Unmanaged POE Switch

  • Layer 2 network switch designed for video data transmission
  • 16 x 10/100/1000 Mbps ethernet ports, 1 x 10/100/1000 Mbps uplink ethernet port and 1 x 10/100/1000 Mbps uplink SFP port
  • IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z network standards available
  • IEEE 802.3 af & at high POE power supply
  • Store-and-forward switching
  • Safe and reliable using 6 KV high surge protection
  • Plug and play ensures simplicity and convenience.

Network Parameters

  • Ports16 × Gigabit PoE ports, 1 × Gigabit RJ45 port, and 1 × Gigabit fiber optical port
  • Port TypeRJ45 port, full duplex, MDI/MDI-X adaptive
  • StandardIEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3z
  • Forwarding ModeStore-and-forward switching
  • MAC Address Table8 K
  • Switching Capacity36 Gbps
  • Packet Forwarding Rate26.784 Mpps
  • Internal Cache4.1 Mbits

PoE Power Supply

  • PoE StandardIEEE 802.3af, IEEE 802.3at
  • PoE Power PinEnd-span: 1/2(-), 3/6(+)
  • PoE PortPorts 1 to 16
  • Max. Port Power30 W
  • PoE Power Budget230 W

General

  • Dimensions (W × H × D)440 mm × 44 mm × 220.8 mm (17.3” × 1.7” × 8.7”)
  • ShellMetal material
  • Gross Weight3.53 kg (7.78 lb)
  • Net Weight2.67 kg (5.89 lb)
  • Operating Temperature-10 °C to 55 °C (14 °F to 131 °F)
  • Operating Humidity5% to 95% (no condensation)
  • Storage Temperature-40 °C to 85 °C (-40 °F to 185 °F)
  • Storage Humidity5% to 95% (no condensation)
  • Power Consumption In Idle20 W
  • Power Supply100 to 240 VAC, 50/60 Hz, Max. 4 A
  • Max. Power Consumption250 W

Approval

  • EMCFCC (ANSI C63.4, 47 CFR PART 15B); CE-EMC/RCM (EN 55032: 2015+A11:2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020); IC (ICES-003: Issue 11)
  • SafetyUL (UL 62368-1); CB/RCM (IEC 62368-1:2014); CE-LVD (EN 62368-1:2014+A11:2021)
  • ChemistryCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2010)

Brochure

16 Port Gigabit Unmanaged POE Switch

  • Layer 2 network switch designed for video data transmission
  • 16 x 10/100/1000 Mbps ethernet ports, 1 x 10/100/1000 Mbps uplink ethernet port and 1 x 10/100/1000 Mbps uplink SFP port
  • IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z network standards available
  • IEEE 802.3 af & at high POE power supply
  • Store-and-forward switching
  • Safe and reliable using 6 KV high surge protection
  • Plug and play ensures simplicity and convenience.
