Manufacturer: Ness Corporation

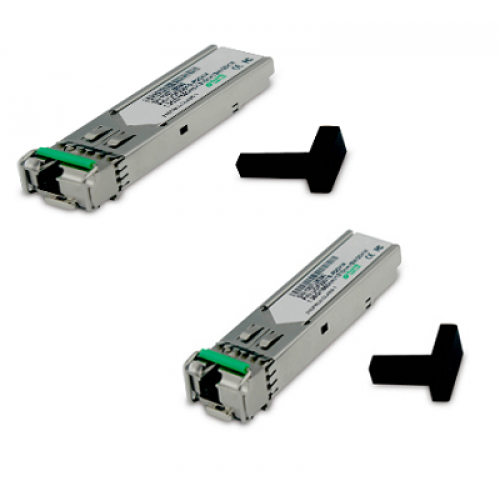

1.25G SFP MODULES (PER PAIR)

SFP Optical Module 1.25G Single Optical Fiber 20km

SKU: 104-575SFP

Overview
Features
Specifications

This is a standard SFP optical module. It uses a single-mode, single optical fibre and the speed rate can up to 1.25Gbps, transmission distance up to 20 km. This product needs to be used in pair and match up with fibre converter and optical Ethernet switch with SFP port, it can be used in Ethernet, telecom and optical fibre communication and other industries.

(Includes Tx and Rx Module).

Use SFP packaging form, LC connector, support SFF8472 standard;
Support hot plug;
Transmitter use1310nm FP laser and 1550PIN-TIA;
Receiver use 1550nm FP laser and 1310nm PIN-TIA;
The data transmission distance of single-mode optical fibre can up to 20 km;
Data input and output ports comply with the low voltage emitter-coupled logic (LVPECL) standard;
Low electromagnetic interference to the environment, strong ESD protection;
Meet IEC-60825 laser safety standard;
Meet RoHS standard.

Item		Description
Power	Power Supply	The Host Power Supply
	Voltage Range	DC3.15V～3.45V
	Consumption	1W
Optical Characteristics	Optical Wave Length	1310nm/1550nmand1550nm/1310nm;
	Emission Light Power	-8～-3 dBm
	Receiver Sensitivity	-24 dBm
Transmission Characteristics	Optical Fibre Type	Single mode9/125um
	Optical Fibre Port	LC
	Transmission Distance	Singlemode20km
Protection	ESD	1acontactdischarge3level
		1bairdischarge3level
		Per:IEC61000-4-2
Environmental	Working Temperature	0℃~70℃
	Storage Temperature	-40℃~70℃
	Humidity (Non-condensing)	0~95%
Mechanical	Dimension (L×W×H)	55.4mm×13.7mm×6.25mm
	Material	Stainless steel
	Colour	White
	Weight	17g

(Includes Tx and Rx Module).
