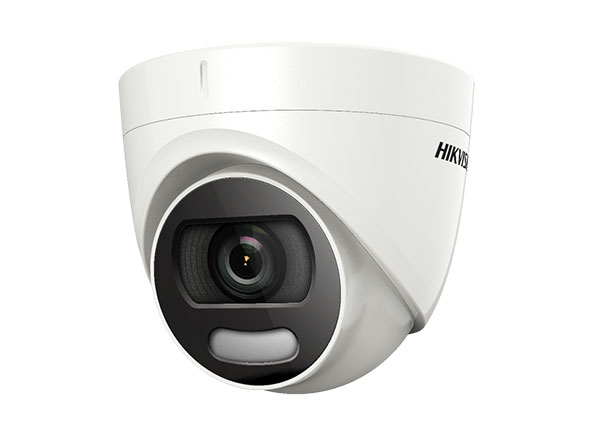

HIK DS-2CE72HFT-F28 5MP TVI ColorVu Turret 2.8mm

Camera

• Image Sensor5 MP CMOS
• Max. Resolution2560 (H) × 1944 (V)
• Min. Illumination0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
• Shutter Time

  PAL: 1/25 s to 1/50, 000 s

  NTSC: 1/30 s to 1/50, 000 s

• Day & NightColor
• Angle AdjustmentPan: 0° to 360°; Tilt: 0° to 75°; Rotate: 0° to 360°
• Signal SystemPAL/NTSC
• Light AlarmYes

Lens

• Lens Type2.8 mm fixed lens
• Focal Length & FOV2.8 mm, horizontal FOV: 99.7°, vertical FOV: 72°, diagonal FOV: 139.8°
• Lens MountM16


• Image Parameters SwitchSTD/HIGH-SAT
• Image SettingsBrightness, Sharpness, Mirror, Smart Light
• Frame Rate

  TVI: 5MP@20fps, 4MP@30fps, 4MP@25fps, 1080p@30fps, 1080p@25fps

  CVI: 4MP@30fps, 4MP@25fps

  AHD: 5MP@20fps, 4MP@30fps, 4MP@25fps

  CVBS: PAL/NTSC

• Day/Night ModeColor
• Wide Dynamic Range (WDR)≥130 dB
• Image EnhancementBLC, HLC
• White BalanceATW/MANUAL
• White LightAUTO/OFF
• AGCSupport

Interface

• Video OutputSwitchable TVI/AHD/CVI/CVBS

General

• Material

  Main Body: Metal

  Enclosure: Plastic

• DimensionΦ 109.82 mm × 85.56 mm (4.32" × 3.37")
• Approx. 350 g ( 0.77 lb.)
• Operating Condition-40° C to 60° C (-40° F to 140° F), Humidity 90% or less (no condensation)
• CommunicationHIKVISION-C
• LanguageEnglish
• Power Supply

  12 VDC ± 25%

  *You are recommended to use one power adapter to supply the power for one camera.

• Consumption

  Max. 3.5 W



• White Light RangeUp to 20m

Approval

• ProtectionIP67
