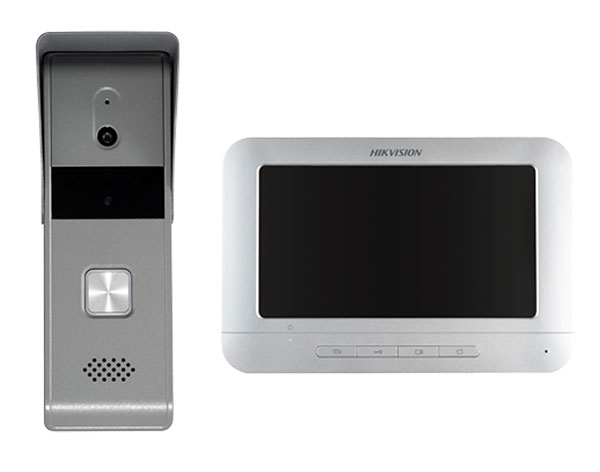

HIK DS-KIS203T Analogue Video Intercom Kit

Door Station/Video Parameters

• Resolution1920 × 1080
• Lens1/2.7" CMOS
• FOVHorizontal: 66.2°，Vertical: 37.2°

Door Station/Audio Parameters

• Audio InputBuilt-in omnidirectional microphone
• Audio OutputBuilt-in loudspeaker

Door Station/Device Interfaces

• I/O Output1 relay output
• Four-Wire1-ch video input, 1-ch audio input/output, 1-ch power supply, 1-ch grounding

Door Station/General

• Power Supply12 VDC
• Power ConsumptionMax. 5W
• Working Temperature-10° C to + 55° C (14° F to 131° F)
• Working Humidity10% to 90%
• Dimensions128 mm × 42 mm × 24.8 mm
• Protective LevelIP65

Indoor Station/Display Parameters

• Operation MethodPhysical button
• Type7-inch colorful TFT LCD
• Resolution800 × 480

Indoor Station/Audio Parameters

• Audio InputBuilt-in omnidirectional microphone
• Audio OutputBuilt-in loudspeaker
• Audio QualityNoise suppression and echo cancellation

Indoor Station/General

• Power Supply12 VDC
• Power Consumption≤5 W
• Working Temperature-10° C to + 55° C (14° F to 131° F)
• Working Humidity10% to 90%
• Dimensions (W × H × D)195.8 mm × 132.8 mm × 18.39 mm (7.7" × 5.2" ×0.7")
